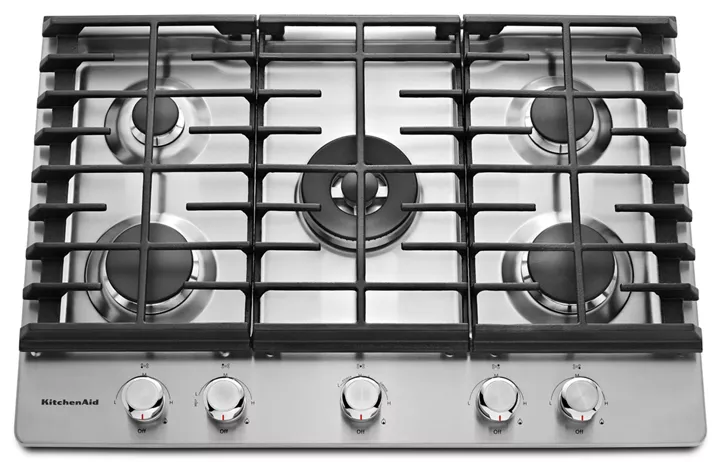

KitchenAid 30″ 5-Burner Gas Cooktop KCGS550ESS

30″ 5-Burner Gas Cooktop

This 30-inch gas cooktop provides exceptional power with five individual burners, including a powerful 17,000 BTU Dual Ring Burner. For added versatility, the 6,000 BTU Even-Heat™ Simmer Burner creates ideal conditions to melt without scorching. The CookShield Finish protects the cooktop against stains that may occur due to high-temperature cooking and makes it easy to wipe clean without harsh chemicals.
Exterior Details

Knob Color
Stainless Steel

Knob Type
Metal

Cooktop Details

Combination Match with Oven
KOES527P, KOES530P, KOSC104FSS, KOSC504, KOSE500, KOSE507, KOSE900, KOST100, KOST107

Cooktop Surface Color
Color Coordinated

Cooktop Surface Material
Stainless Steel

Griddle Included
Optional Accessory

Heating Element On Indicator Light
No

Hot Surface Indicator Light
No

Ignition Type
Direct Spark Ignition

Installs Over Built-In Oven
Yes

Dimensions

Common Size
30 in

Cutout Depth
19-813/1000 in

Cutout Depth Max
20 in

Cutout Height
5-1/4 in

Cutout Width
28-7/8 in

Depth
21 in

Gross Weight
59-3/5 lbs

Height
3-1/16 in

Maximum Height
4-579/10000 in

Net Weight
53-3/5 lbs

Width
30 in

Element/Burner Details

Automatic Pan Detection
No

Automatic Pan Size Adjustment
No

Center Element Burner Power
17,000 BTU

Center Element Burner Type
Even Heat Dual

Center Rear Element-Burner Power
17,000 BTU

Center Rear Element-Burner Type
Professional Dual Tier

Cooktop Type
Standard

Left Front Element-Burner Power
10000 BTU

Left Rear Element-Burner Power
6,000 BTU

Left Rear Element-Burner Type
Simmer

Number of Cooking Element-Burners
5

Number of Grates
3

Power Boost
No

Right Front Element-Burner Power
10,000 BTU

Right Rear Element-Burner Power
7,000 BTU

Details

Cooktop Configuration
All Burners

Digital Display
No

Fuel Type
Gas

LP Convertible
Yes – Kit Included

Power Outage Compatible
Yes

Ventilation Details

Downdraft Vent
No

Grate Details

Grate Details
Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish

Controls

Control Location
Front

Control Type
Knobs

Electrical

Amps
15

Hz
60

Power Cord Included
Yes

Volts
120

Features

Cooktop Features
ADA Compliant, Even-Heat Melt Burner
