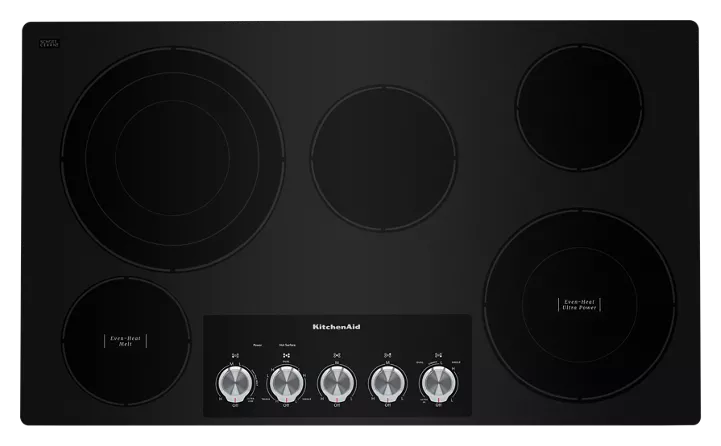

KitchenAid 36″ Electric Cooktop with 5 Elements and Knob Controls

36″ Electric Cooktop with 5 Elements and Knob Controls

This 36″ electric cooktop combines timeless style with the performance of five radiant elements, including a 10” Even-Heat™ Ultra Power™ Element with Simmer Setting, a 6” Even-Heat™ Elements with Melt Setting, and a 12”/9”/6” Triple-Ring Round Element that maximizes your flexibility with three distinct rings that allow for element selection based on cookware size.
Cooktop Details

Combination Match with Oven
KOES527P, KOES530P, KOSC504, KOSE500, KOSE507, KOSE900, KOST100, KOST107

Cooktop Surface Color
Black

Cooktop Surface Material
Glass

Griddle Included
N/A

Heating Element On Indicator Light
Yes

Hot Surface Indicator Light
Yes

Installs Over Built-In Oven
Yes

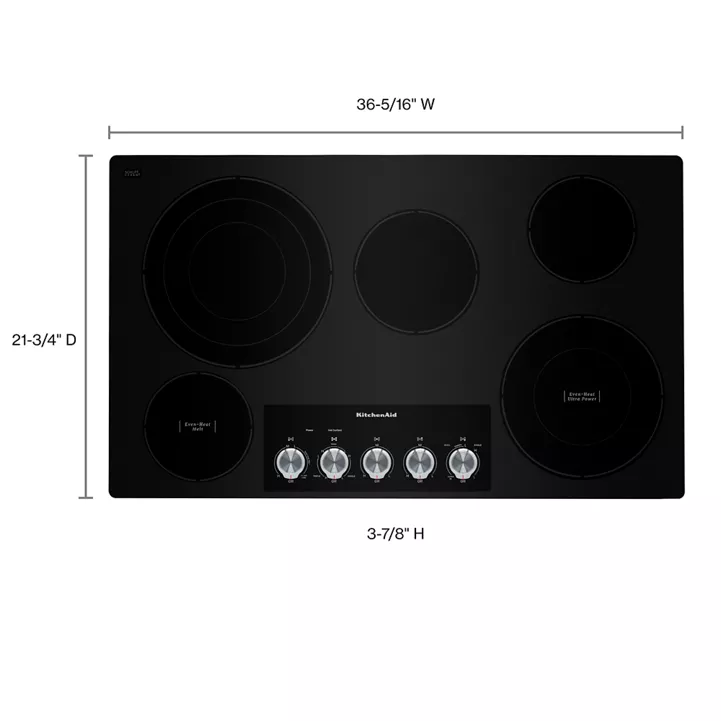

Dimensions

Common Size
36 in

Cutout Depth
20-3/8 in

Cutout Depth Max
20-563/1000 in

Cutout Width
34-563/1000 in

Depth
21-3/4 in

Gross Weight
56 lbs

Height
5-1/4 in

Maximum Height
5-1/4 in

Net Weight
51 lbs

Width
36-5/16 in

Exterior Details

Knob Type
Metal

Element/Burner Details

Automatic Pan Detection
No

Center Rear Element-Burner Power
1,800W

Center Rear Element-Burner Size
8in.

Center Rear Element-Burner Type
Standard

Cooktop Element Style
Radiant

Cooktop Type
Standard

Left Front Element-Burner Power
1,300W

Left Front Element-Burner Size
6in.

Left Front Element-Burner Type
Even-Heat™

Left Rear Element-Burner Power
3000W/2200W/1100W

Left Rear Element-Burner Size
12in./9in./6in.

Left Rear Element-Burner Type
Triple

Number of Cooking Element-Burners
5

Power Boost
No

Right Front Element-Burner Power
3,200W

Right Front Element-Burner Size
10in./6in.

Right Front Element-Burner Type
Dual

Right Rear Element-Burner Power
1,200W

Right Rear Element-Burner Size
6in.

Right Rear Element-Burner Type
Standard

Ventilation Details

Downdraft Vent
No

Electrical

208V Compatible
Yes

Amps
40

Hz
60

Power Cord Included
No

Volts
240

Controls

Control Location
Front

Control Type
Knobs

Details

Cooktop Configuration
All Burners

Digital Display
No

Fuel Type
Electric

LP Convertible
No

Power Outage Compatible
No

Features

Cooktop Features
ADA Compliant
