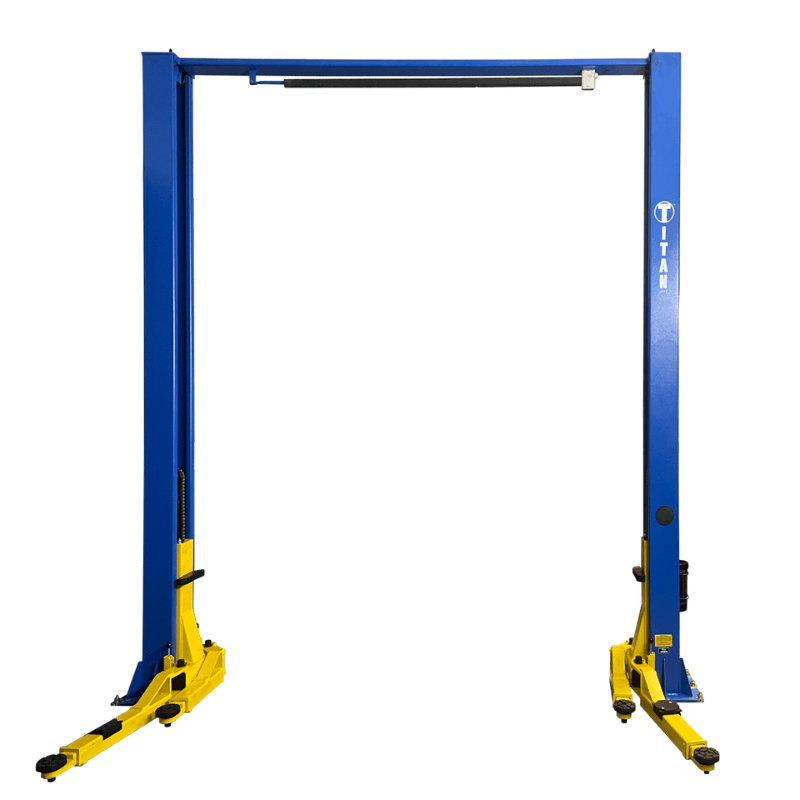

HD2P-9000AC 9,000lb 2-Post Lift by Titan
The Titan HD2P-9000AC 2-Post Lift Gen-2 is a durable and reliable lifting solution designed for automotive service shops and serious car enthusiasts. With a 9,000lb capacity, this lift is suitable for a wide range of vehicles and features an asymmetric arm design for easy vehicle access. Its heavy-duty construction and sleek finish make it a long-lasting addition to any garage. It also comes with safety features such as rubber door guards and a safety shut-off bar. Plus, it is easy to install and has a 5-year structural warranty.
2-Post Lift Gen-2 HD2P-9000AC Specifications
Type: 2-Post Lift
Lifting Capacity: 9,000 lbs
Arm Design: Asymmetric
Hydraulic System: Dual 3” cylinders with low-friction chain rollers

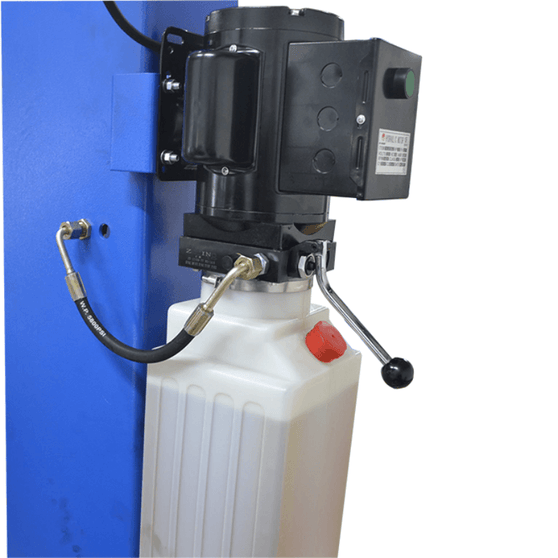

Power Unit: 220V
Amp Draw: 15–26 amp
Lifting Speed: 45 seconds
Width: 137.8”
Height: 142.95”
Width Between Posts: 113.62”
Drive Thru Clearance: 103.98”
Lifting Height: 4.65” – 72.84”
Concrete Requirement: 4” thick, 3,000 PSI strength
Shipping Length: 145”
Shipping Width: 19”
Shipping Height: 44”
Shipping Weight: 1,380 lbs
HD2P-9000AC 2-Post Lift Gen-2 Special Features
Commercial-grade design for professional and enthusiast use
9,000lb lifting capacity to accommodate various vehicles
Asymmetric arm design for better vehicle access
Rubber door guards to protect vehicle finishes
Padded overhead safety shut-off bar for added protection
Dual-point safety release for controlled lowering
Durable powder-coated finish in Cobalt Blue with bright yellow arms
Low-profile lifting arms with automatic arm restraints
Dual 3” hydraulic cylinders with low-friction chain rollers for smooth operation
Threaded lifting pads and stackable truck adapters for versatility
Space-saving power unit mounting bracket for efficient garage layout
Sleek internal hose routing with integrated hose guards
Anchor bolt kit included for secure installation
5-year structural warranty and 1-year electric/hydraulic parts warranty
