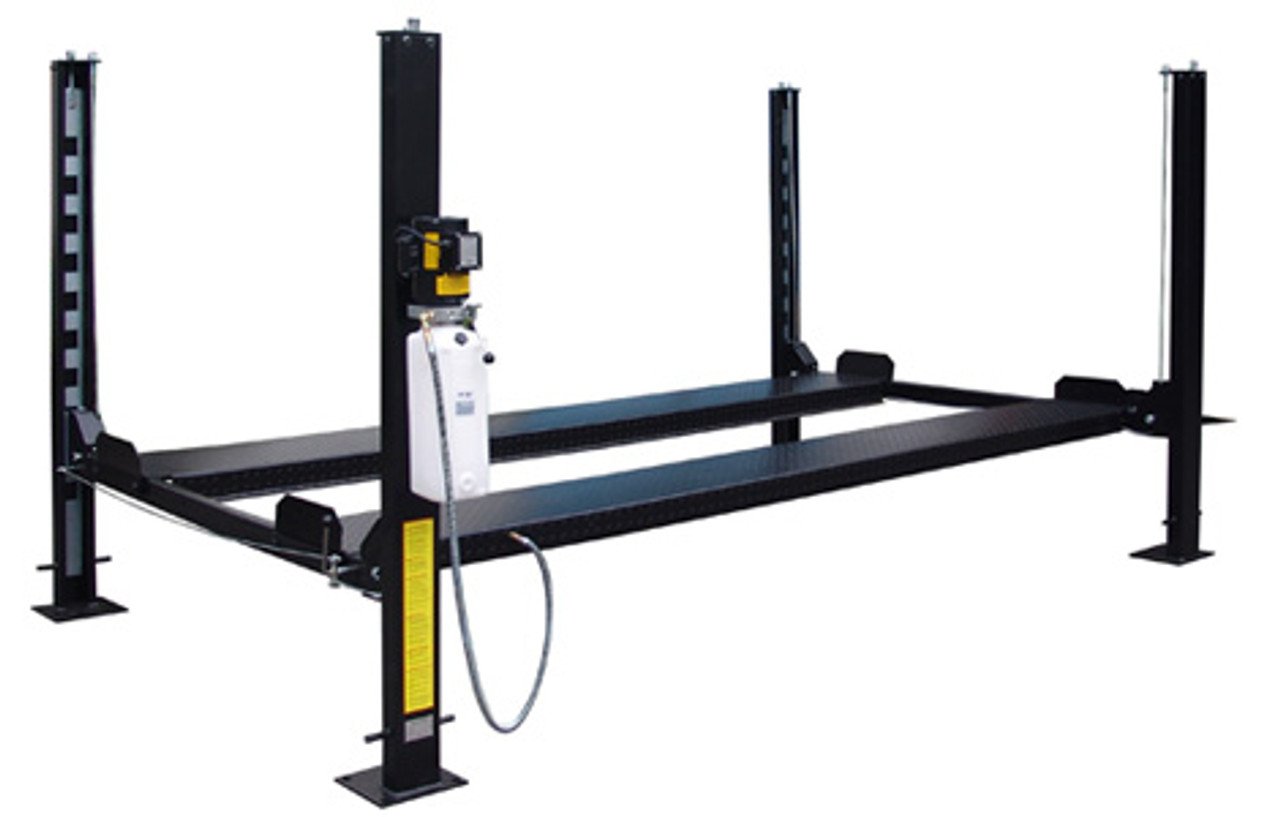

TUX FP8K-B Basic Storage Lift 8,000lb 4 Post Parking Lift
IN STOCK
FEATURES
8,000 lb lifting capacity
Carriages completely enclosed for safety
Internal lock ladder safety system with “auto engage” locking bar in the event of cable failure
Extra large slider blocks for added stability
10 lock positions
Aircraft quality cables rated at 14,500 lbs
18″ wide runways formed with one-piece 3/16″ non-skid diamond plate
Easy operation: Lock release handle located near power unit
Large 3″ diameter cylinder
SPECS
Capacity
8,000 lbs.
Lifting Height
74.8″
Overall Length w/Ramp
207.3″
Overall Length w/No Ramp
175.5″
Overall Width
103.5″
Runway Tread Width
18.7″
Runway Length
165.5″
Runway Height
4.3″
Column Height
86″
Clearance Between Columns
94.4″
Clearance between Runways
37.2″
Outside Runway to Outside Runway
74.8″
Clearance Under Runways
70″
Drive Thru Width
80″
Locking Positions
10
Base Plate Size
10” x 12
Power
110V-20 Amp / 1PH
Ship Weight
1,695 lbs
