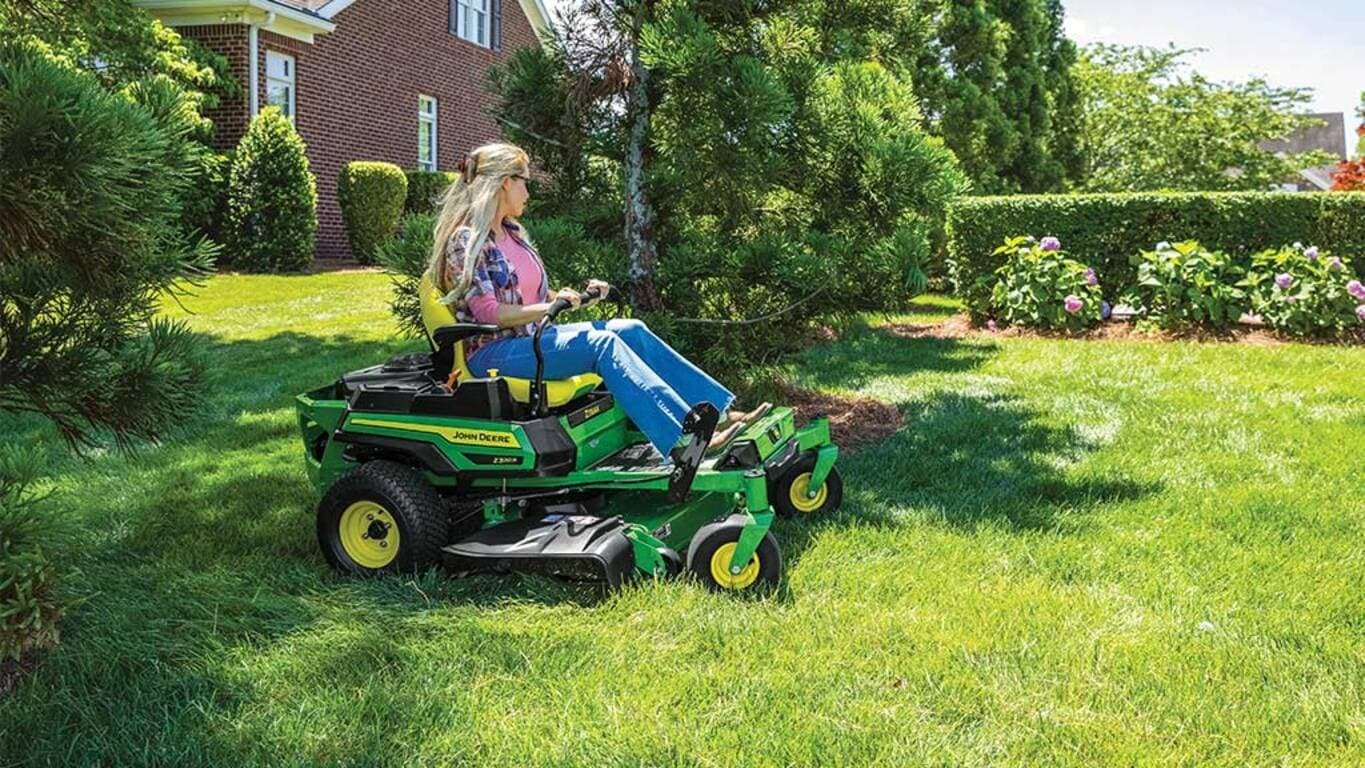

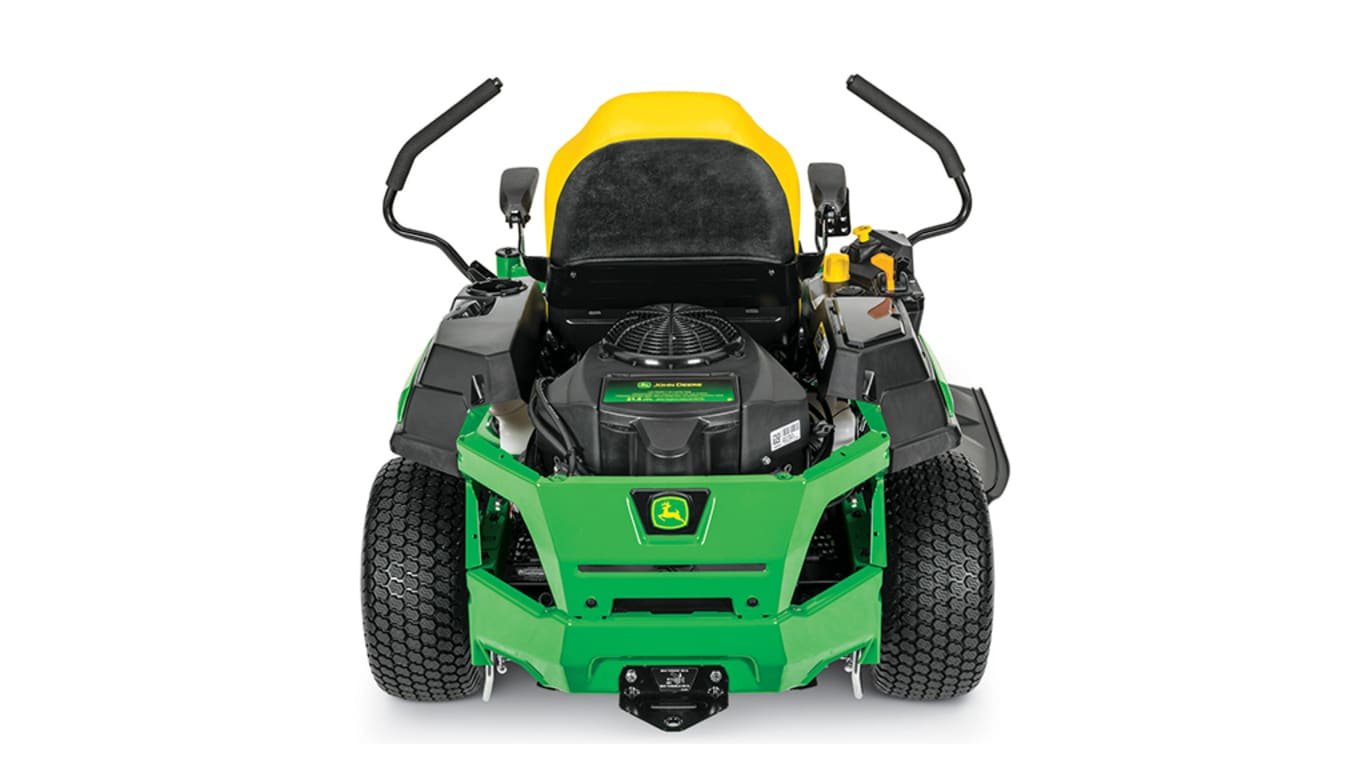

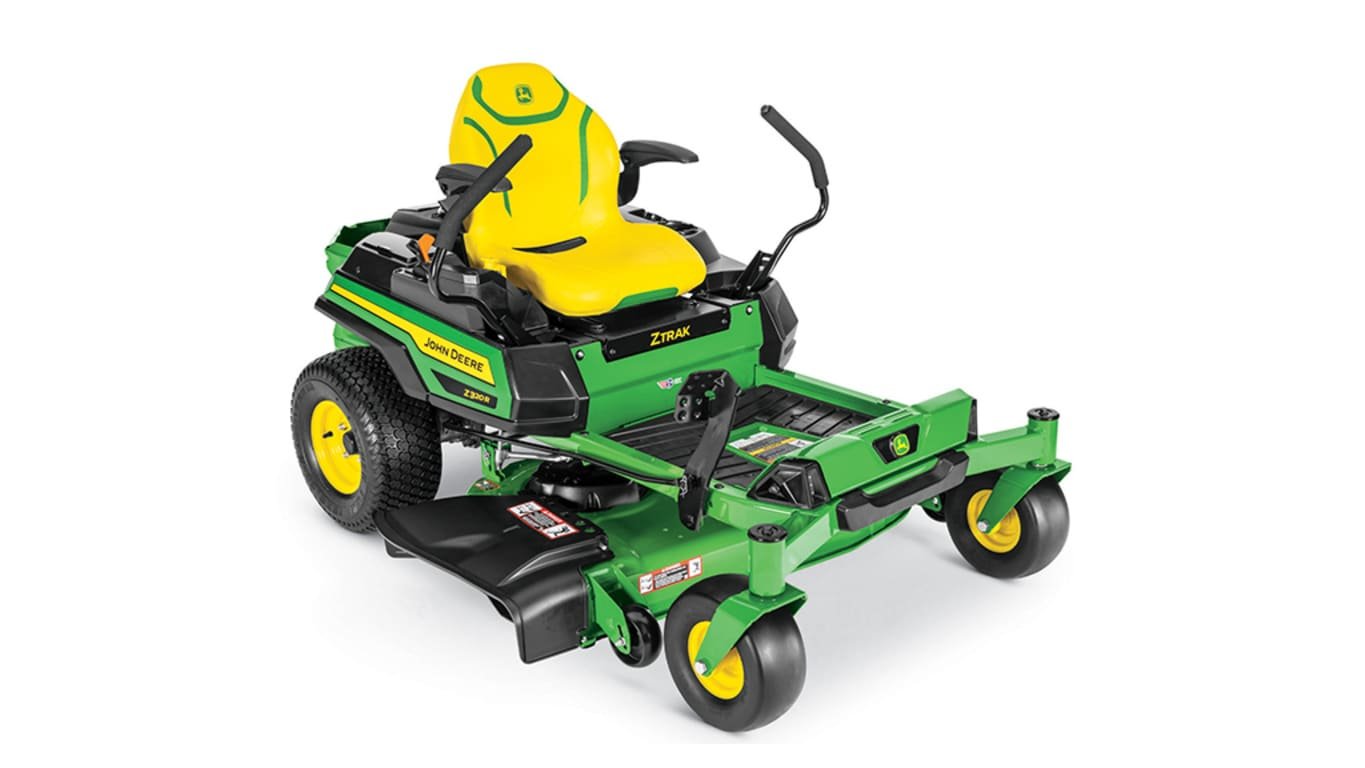

Z20R ZTrak™ Mower with 42-in. Deck

Engine power
21.5 hp
16.0 kW

Engine model number
FR651V

Forward speed
0-7 mph
0-11.3 km/h

Front caster tires
11×6-5

Drive tires
18×8.5-8

Seat back height
High back with armrests, 20 in.
51 cm

Width of cut
Accel Deep™ mower deck, 42 in.
107 cm

Mulching system
Optional MulchControl™ attachment

Warranty
3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Key Specs

Power
21.5 hp
16.0 kW

Model number
FR651V

Displacement
44.3 cu in.
726 cc

Cylinders
V-twin

Lubrication
Full pressure with replaceable filter, capacity, 2.2 U.S. qt
2.1 L

Type
Overhead valve

Battery
12 V
300 CCA

Choke/speed control
Separate levers

Cooling method
Air

Fuel tank capacity
3.0 U.S. gal.
11.4 L

Fuel gauge
Translucent tank

Engine

Dual hydros
Hydro-Gear EZT-C with 1-in. (2.5-cm) axles

Drive train

Forward speed
0-7 mph
0-11.3 km/h

Reverse speed
0-3.5 mph
0-5.6 km/h

Speed and direction control
Twin levers

Control adjustment
3 height, 11 positions

Travel speed

Frame
Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing

Primer/paint
E-coat/powder

Front caster tires
11×6-5

Front caster bearings
Sealed ball bearings

Drive tires
18×8.5-8

Hour meter
Yes

Service interval decal
Yes

Storage compartment
Standard covered

Cup holder
Yes

Maximum towing capacity
250 lb
113 kg

Chassis

Seat back height
High back with armrests, 20 in.
51 cm

Fore-aft adjustment
2.9 in.
7 cm

Seat suspension
Two springs

Seat

Type
Foot lift

Mower cut height
1.25-4.5 in.
3-11 cm

Cut height increments
0.25 in.
0.64 cm

Preset cut height
Yes

Lift system

Width of cut
Accel Deep™ mower deck, 42 in.
107 cm

Type
Side discharge

Mower deck material
12 gauge
0.105 in.
2.7 mm

Mower drive system
V-belt

Mower deck

Type
Electric, 105 lb-ft
142 Nm

Drive
V-belt

PTO

Wheelbase
49.4 in.
1255 mm

Overall length
75.4 in.
1915 mm

Width without mower
43.3 in.
1100 mm

Width with mower
50.4 in.
1280 mm

Width with mower (deflector raised for storage)
46.5 in.
1180 mm

Height
43.3 in.
1100 mm

Weight
572 lb
260 kg

Dimensions

Rollover protective structure (ROPS)
No

Slope operating limit
13 degrees; 10 degrees with Material Collection System

Operator presence system
Yes

Park brake interlock
Yes

Operator video
Yes, online

Operation

Note 1
Durable Accel Deep Mower Decks are made from 12-gauge steel with double captured mower wheels

Note 2
Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial

Note 3
Integrated park brake is automatically applied when steering levers are stowed outward

Warranty
3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Buyer’s notes

Mulching system
Optional MulchControl™ attachment

Rubber floor mat
Standard

Sun shade
Optional

Mounted sprayer
Not available

Protective cover
Optional

Light kit
Standard

Material collection system
Two-bag cut-and-throw MCS, 6.5 bu
229 L

Optional attachments

Manufacturing location
Greeneville, Tennessee, USA

Date collected
3-Oct-22
